TOTAL DRUM HANDLING SAFELY
WITH JUST ONE MAN AND ONE APPLIANCE !

Download Brochure (229k)

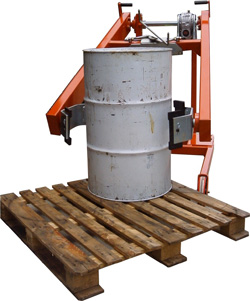

GRIP MODEL

This innovative range of Lift & Tip machines are designed for high volume movements of steel 205 litre drums to 350 Kgs capacity. They are manufactured in three lift heights of 1,600 mm, 2,000 mm and 2,700 mm. An optional 3,000 mm lift is also available. The Grip type machines are heavy duty to suit constant drum handling (lift & tip) requirements. They use our proven foot activated hydraulic lifting system and can be fitted with optional Compressed air or 12 Volt Deep Cycle Battery, for the lift process. The Grip type machine will load/unload drums from a standard pallet and place them on the floor, racks or decant into your process. Drum tipping is carefully controlled through a worm type, gear reduction gearbox that precludes auto rotation from the drum. Grip type machines can also be fitted with special Grippers to suit specific Plastic or Fibre drums. Many other options for this range of machines are available.

Need to Weigh drums?
The Grip type machine can be fitted with either an Industrial scale or Intrinsically safe scale system where Tare or Gross weighing is required. Both will offer accuracy of 0.5 Kgs.

Need a machine to work in Food, Beverage or Pharmaceutical areas?
The Grip machine can be built in 304 Stainless steel or a combination of 304 Stainless Steel at the Drum handling end of the machine and a hard wearing 2-Pack epoxy frame.

Need a Lift & Tip machine in Intrinsically safe work areas?
The Grip Type machine can be supplied with Anti-Static wheels and an Earth Lug to fully comply.
